俄羅斯ITM-525孔壁銅測厚儀PCB線路板專用, 適用于單、雙、多層線路板
ITM-525 set may include the following items: 配置可包括下列選項
- ITM-525 basic unit 孔銅測厚儀主機
- EP-20 probe EP-20探頭 0.45-0.6mm
- EP-25 cartridge EP-25探頭0.6-0.8mm

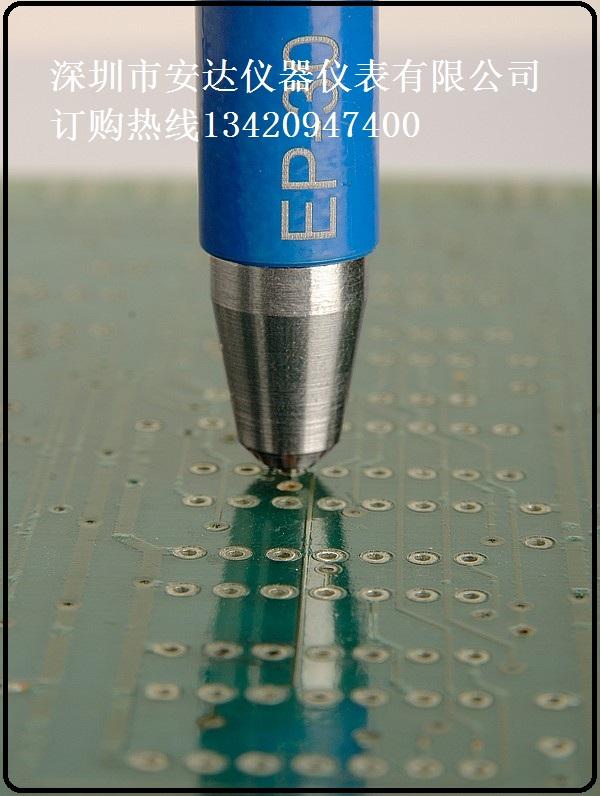

- EP-30 cartridge EP-30探頭0.8-2.0mm
- EP-25S shortened probe EP-25S探頭和連接線組合
- EP-30S shortened probe EP-30S探頭和連接線組合
- Cartridge holder 探頭連接線
- Reference standard RS-52-1 for the EP-30/EP-30S 標準片
- Reference standard RS-52-2 for the EP-25/EP-25S 標準片
- Calibration unit for EP-25/EP-30/EP-25S/EP-30S 校正器
- Reference standard/calibration unit RS-52-3 for the EP-20 標準片
- Hand-held probe guide 支架
- Copper surface probe (CSP) probe銅箔探頭
- CSP calibration foils 標準片
- AC adapter 充電器
- USB cable USB連接線
- Operating Manual 使用說明書
- Plastic storage case 塑料箱子
ITM-525 specification 規格
|
PCB thickness range 線路板厚度
|
0.5 - 6 mm
|
|
Hole diameter range孔直徑范圍
|
0.45 - 2 mm
|
|
Measuring range in the hole 孔壁厚度測量范圍
|
5 - 60 µm
|
|
Measuring range on copper laminate可測銅箔厚度范圍
|
15 - 80 µm
|
|
Minimum continuous operation最小連續操作
|
10 hours
|
|
Weight 重量
|
280 g
|
|
Size 尺寸
|
155 x 80 x 30 mm
|
|
Stored readings 可儲存數據
|
15,000
|
