INSTANTLY MEASURE SMALL HOLE DIAMETERS

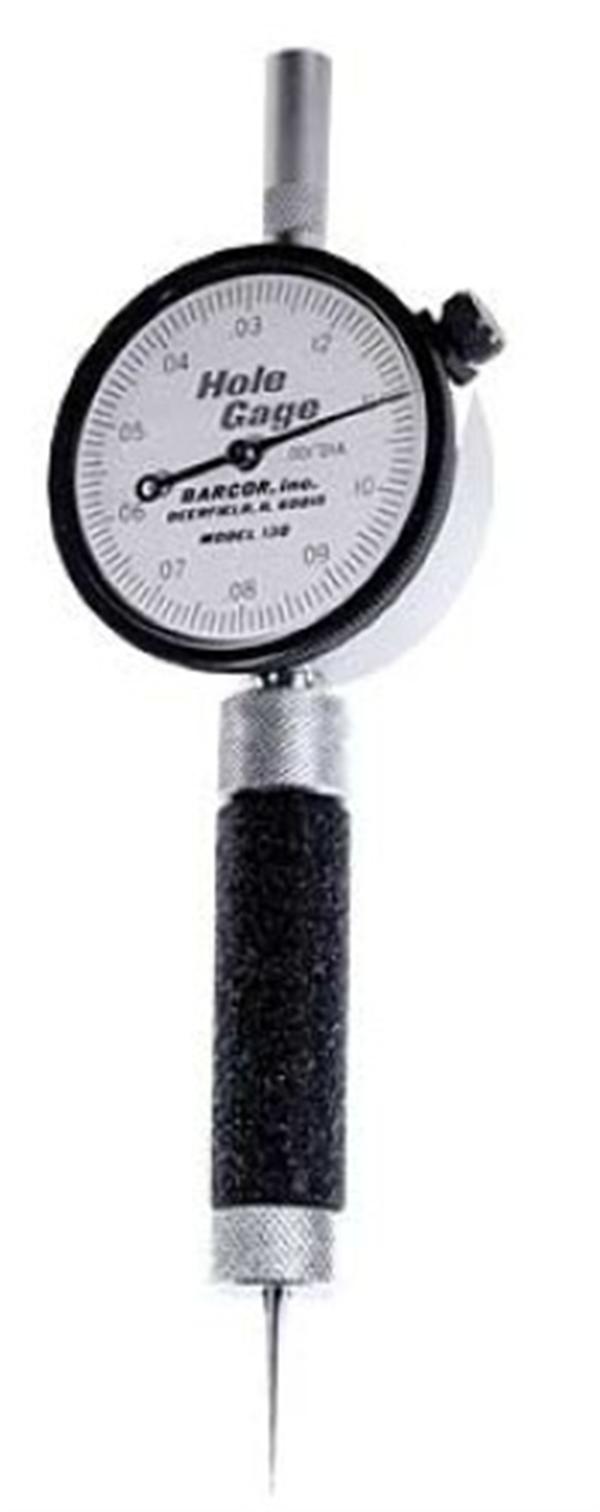

The BARCOR HOLE GAGE is a precision instrument designed to instantly
give you a diameter reading in less than two seconds. Merely insert the
precision ground, hardened tool steel Gaging Plunger into the hole, press
the base of the gage firmly against the part and read the dial directly
in .001" or .02mm diameter increments on the dial face.
The HOLE GAGE is a direct reading gage. No Setting Master (Standard) or
look-up chart is required. To check the setting, press the base of the gage
against any flat ground surface and adjust the dial to read the “Set To”
number stamped on the back.
• 22 Models (11 English/11 Metric) cover a range capacity
from .010" (.25mm) to 1.030" (26.20mm). Individual gages,
except for Model 040, have .100" capacity. Model 040
has .030" capacity.
• AGD Group-2 Dial Indicator with easy to read 2-1/4" Dia. dial.
• Yellow-for-Metric dial faces to prevent accidental misuse.
• All gages furnished with foam lined Storage Case and complete operating instructions.
• Optional NBS Certification available.
• Smallest diameter available is .004" (.10mm) on specials.
• Optional Setting Masters available for greater accuracy.
• Available individually or in convenient sets.
• Super Hole Gage available with .0001" or .001mm resolution.
• Electronic Hole Gage with .0001"/.005mm and SPC, also available.
MODIFICATIONS OR SPECIALS ON REQUEST
IDEAL APPLICATIONS:
• Printed Circuit Boards
• Jig Grinding/Boring Stock
• Screw Machine Paris
• Holes in Sheet Metal and
Stampings
• Electronic
Components/Connectors
• Fuel Injector Nozzels
• Die Plates for
Punches
• Tubing I.D.
• Receiving Inspection
• Layout Inspection
• Penetrameters
• Molded Plastic Parts
• Spray Tips
INCH MODEL .001" GRAD.
Part No. Capacity
BA.040.01 .010" - .040"
BA.130.01 .030" - .130"
BA.230.01 .130" - .230"
BA.330.01 .230" - .330"
BA.430.01 .330"- .430"
BA.530.01 .430"- .530"
BA.630.01 .530"- .630"
BA.730.01 .630"- .730"
BA.830.01 .730"- .830"
BA.930.01 .830"- .930"
BA.1030.01 .930"- 1.030"
METRIC MODELS .02mm GRAD
Part No. Capacity
BA.040M.01 .25- 1.00mm
BA.130M.01 .75- 3.30mm
BA.230M.01 3.30- 5.85mm
BA.330M.01 5.85- 8.35mm
BA.430M.01 8.35- 10.90mm
BA.530M.01 10.90- 13.50mm
BA.630M.01 13.50- 16.00mm
BA.730M.01 16.00- 18.55mm
BA.830M.01 18.55- 21.00mm
BA.930M.01 21.00- 23.60mm
BA.1030M.01 23.60- 26.15mm
